ICS2 note, organized based on slides and textbook

因为最近太忙了，其实草稿箱里有好几篇blog都没空动笔，

先拿这篇 ics 的复习笔记水一水，后面应该会增加更多思路性的东西，能把整篇穿起来

Menu

To be archived

errno: simplest way is to give it to a global variable

Process Scheduling:

• FIFO

• SJF

• STCF

---

Memory Hierachy

Storage

• Disk, rotate
• SSD
• SRAM
• DRAM

RAM

Locality

temporal locality: recent visited data will be visited again

spatial locality: data nearby will have more chance of being visited

Mem Hierachy

Cache

higer level, less space

Cache miss: fetch from a higher level, then overwriting an existing block if full (evicting)

Placement policy: restrict to a smmal subset of lower level cache

Miss types:

• cold miss: warm up the cache
• conflict miss: unhealthy miss, 'cause the cache is not full, map policy doesn’t behave well
• capacity Miss: this a healthy miss

Cache Memory

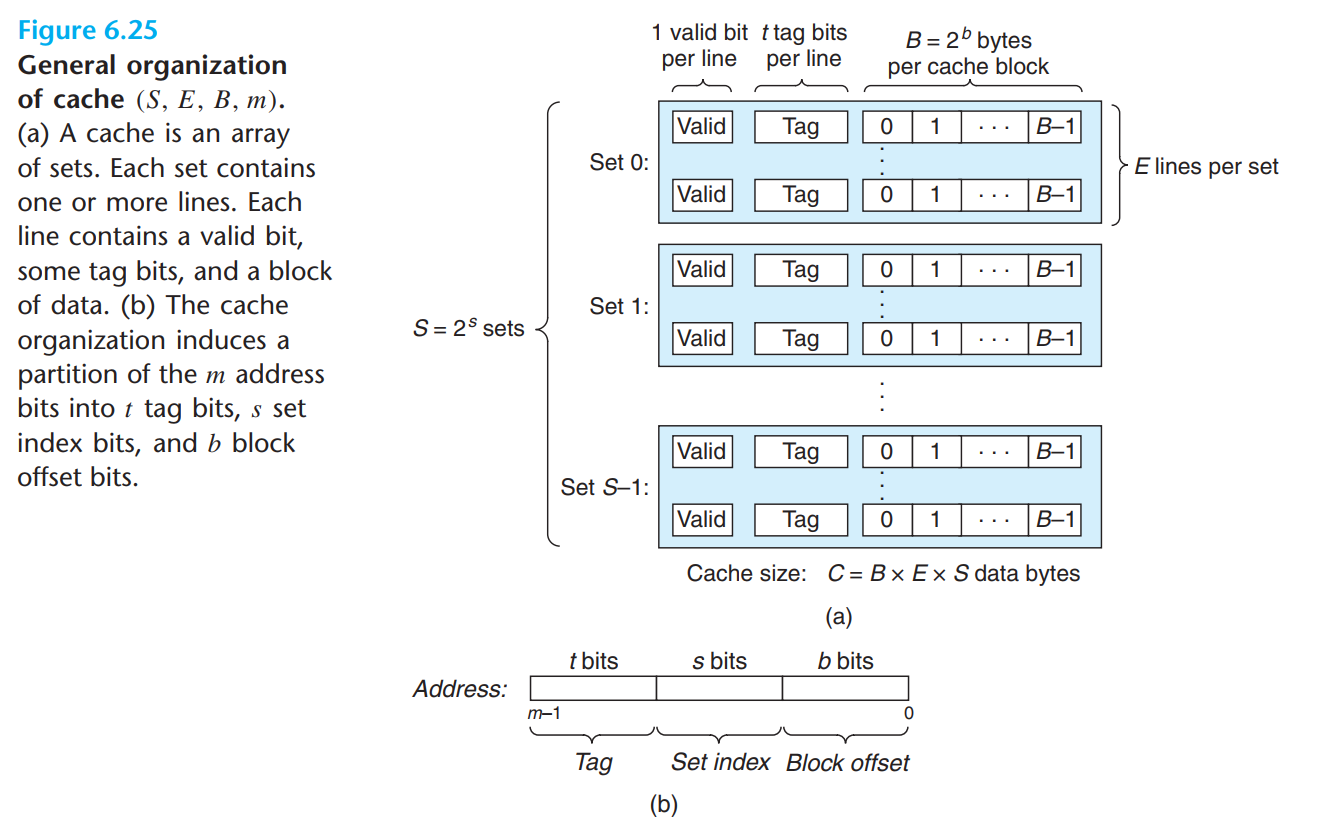

General organization of cache


Direct mapping cache

exactly one line ( E=1 )

Writing Cache

write through: immediately write back to memory

write back:

• write back only when the data shall be evicted

• need a dirty bit

when it comes to write miss, there are 2 strategies correspondlingly:

• write-allocate for write back: exchange level by level
• no-write-allocate for write through: write directyly to low level

Memory Mountain

---

Exceptional Control Flow

Process Control (Exception)

reaping

Pay attention to these concepts:

• zombie, child process terminated but not recycled
• orphane, child process who is still running when parent exit

parent reaps the terminated child (zombie)

init process:

• when a parent terminates, kernel arrange for init process to be the adopted parent of orpahaned children
• created during sys setup
• never terminate
• is the ancestor of every process

waitpid function:

pid_t waitpid(pid_t pid, int* statusp, int options);

Returns: PID of child is OK, 0(if WHOHANG), or -1 if error

TODO: 3 types of options

sleep

execve

load and run the object, by passing a argument list and a environment variable list

#include <unistd.h>

int execve(const char* filename, const char* argv[], const char* envp[])
    //Doesnot return if OK, returns -1 if error

Signals

higher level of exceptional control flow

Difference between signal and exception

	sender	receiver		character
signal	cpu (user or kernel mode)	kernel
exception	kernel mode	user mode

---

Sending Signal

Process Groups

kill function

send signal to a particular process / process group

alarm function

return remaining sec of previous alarm

---

Receiving Signal

Pending Signal Set

sighandler

---

Blocking N Unblocking

• Implicit: kernel
• Explicit

---

Sighandler Design

• G0
• G1

Design should be aware that pending signals are not queued

eg. catch SIGCHLD to reap children

---

Avoid Nasty Concurrency Bugs

key: signals are async,

eg. If a parents calls fork() and create a record of the child, and registers a sighandler to delete the record after SIGCHLD, it may face bugs

this is called a race

Explictly waiting 4 signals

use a pausefuntion, and a while loop; however the signal may race with pause which could cause the program from never ending

A popular solution is sigsuspend, which is a atomic combination of sigprocmask-pause-sigprocmask

Nonlocal Jumps

setjmp (jmp_buf env)

longjmp (jmp_buf env, int retval)restores the program from the very point of setjmp return

setjmp can be called for several times:

• at first time, save the env, returns 0
• then each corresponding longjmp call, returns retval

while longjmp may be called several times, but never returns

It may bring bugs like memory leak

Application:

1. Permit immediate return from a deeply nested function call
2. Branch out of a signal handler to a specific code location, rather than to the instr that was interrupted by the signal

---

Sys-level I/O

Unix IO

modeled as files

records file offset k

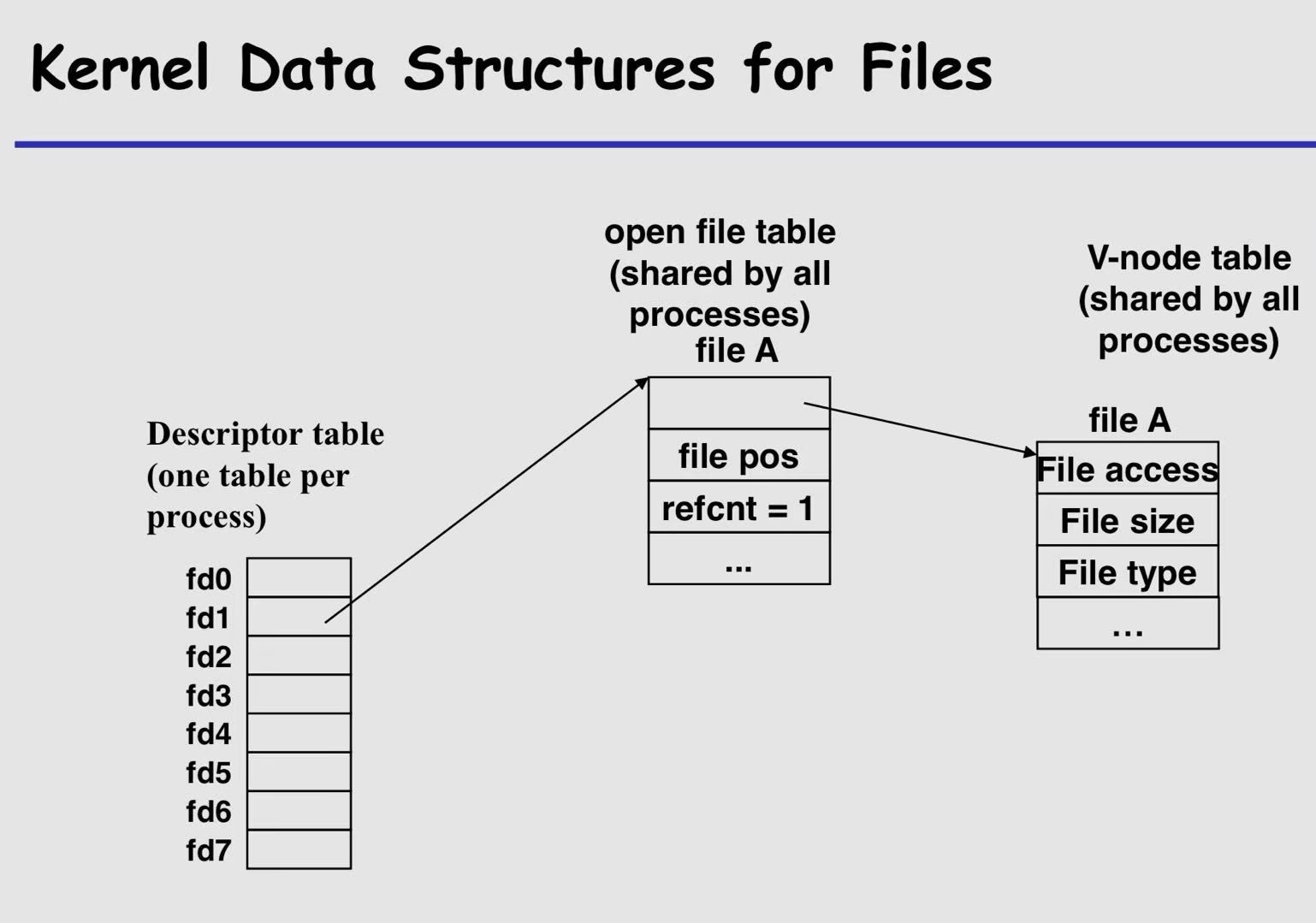

Opening and Closing Files

open converts a filename into a file descriptor and returns fd num

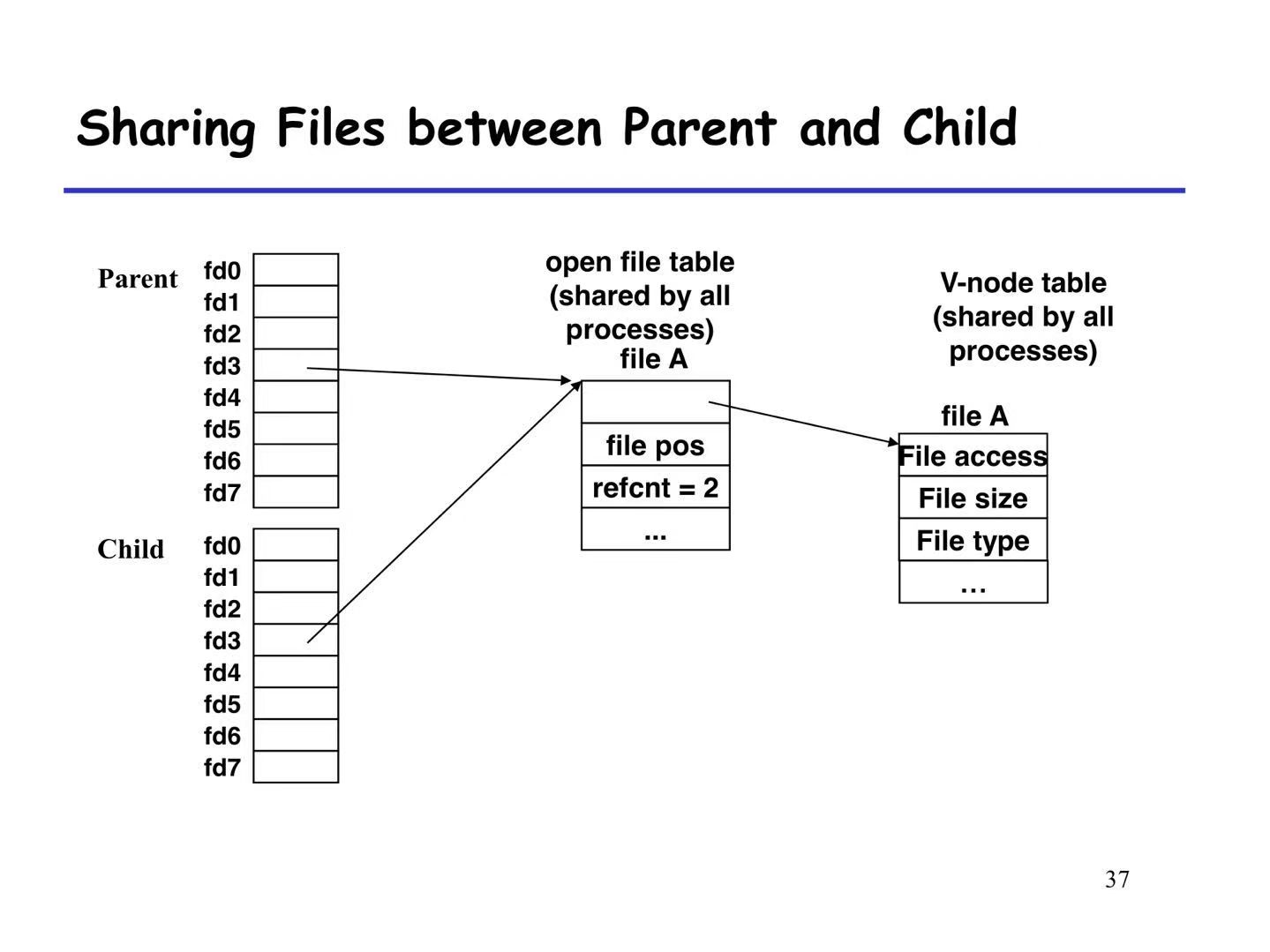

Sharing Files

if a child is fork() from its parent, then the two processes have different fd table, but will point to one open file, whose refcnt++

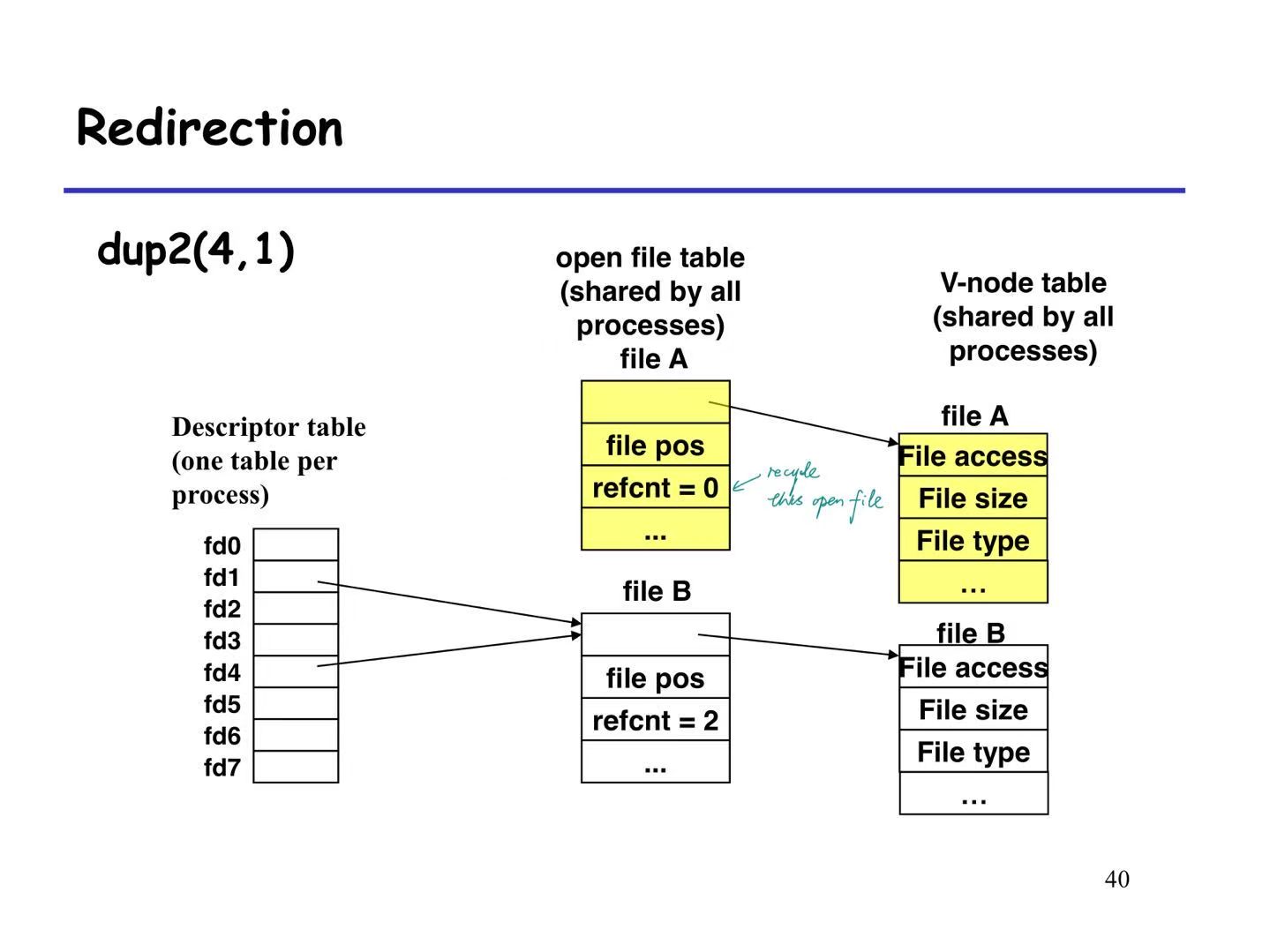

IO Redirection

dup(oldfd)creates a copy using currently avaliable smallest num

dup2(oldfd, newfd)overwrites the entry in fd table

RIO

no-buffer version

ssize_t rio_readn()
ssize_t rio_writen()
    # returns: num of bytes transferred if OK, 0 on EOF, -1 on error

with buffer:

in this version, the high level functions are based on internel functionrio_read()

First define a struct

typedef struct {
    int rio_fd;                // fd
    int rio_cnt;               // Unread bytes in internal buf
    char *rio_bufptr;          // Ptr to next unread byte
    char rio_buf[RIO_BUFSIZE]; // Internal buffer
} rio_t;

void rio_readinitb()

ssize_t rio_readlineb()
ssize_t rio_readnb()

Standard I/O

open files as streams

similar to rio with buffer,but it is generally designed to operate in one state at a time

---

Virtual Memory

Physical and Virtual Memory

VM as a tool for caching

See VM as a tool for caching data from disk, it can maximize the use of memory

However, the cached data are always organized in Physical address, see it in later section where reverse mapping takes the responsibility

Page Table and Address Translation

Because of large miss penalty and large expense of accessing the first byte, VM system paritions VM into pages of size 4k blocks, naming Vitual Page

Similarly PM is also partitioned into Phsical Page

Thus Page Table plays the role of mapping virtual address to physical address, playing an important role in address translation

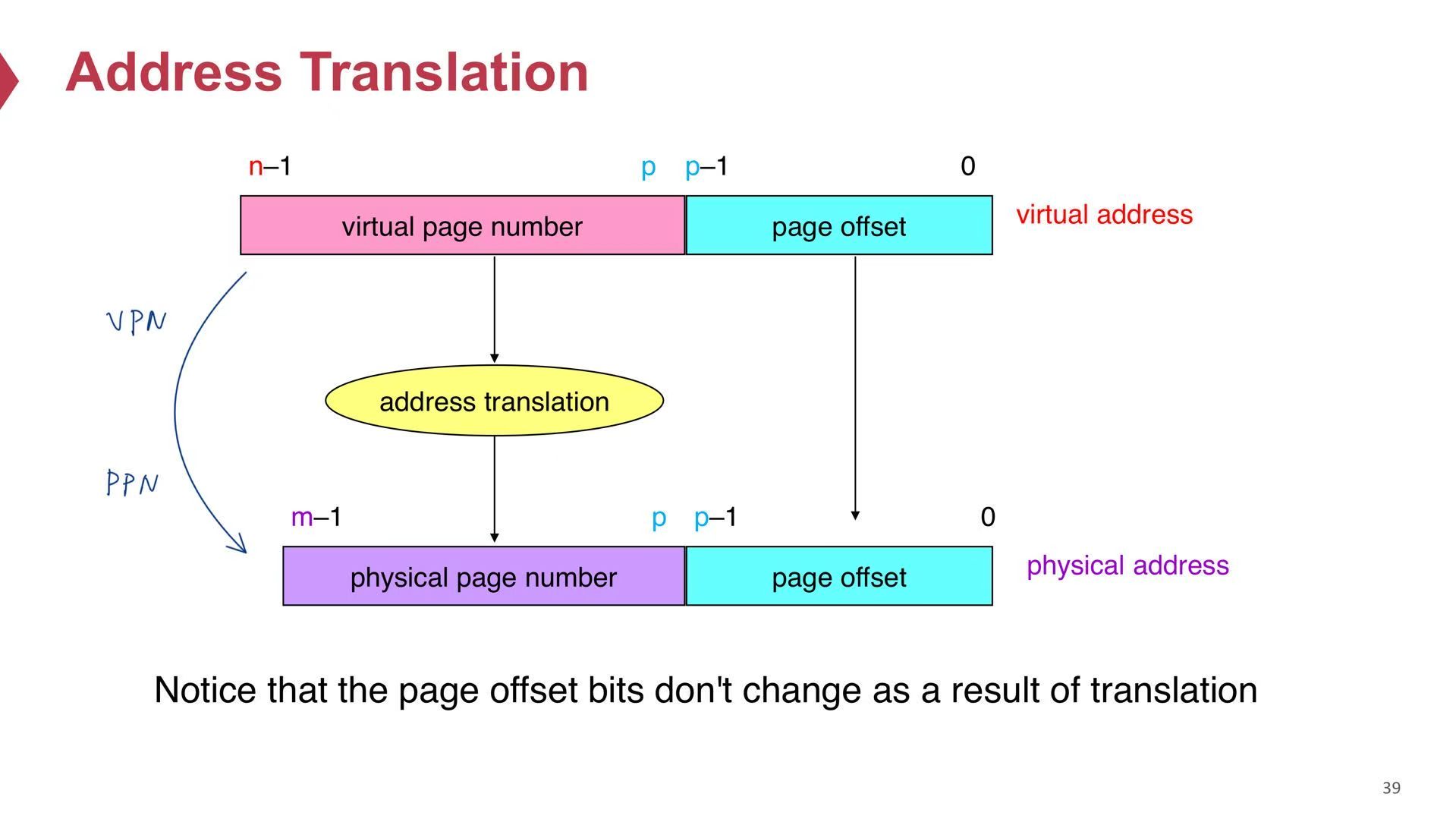

Here’s the component of Virtual Address and Physical Address:

• the front part is marked as page number
• the latter part is marked as page offset

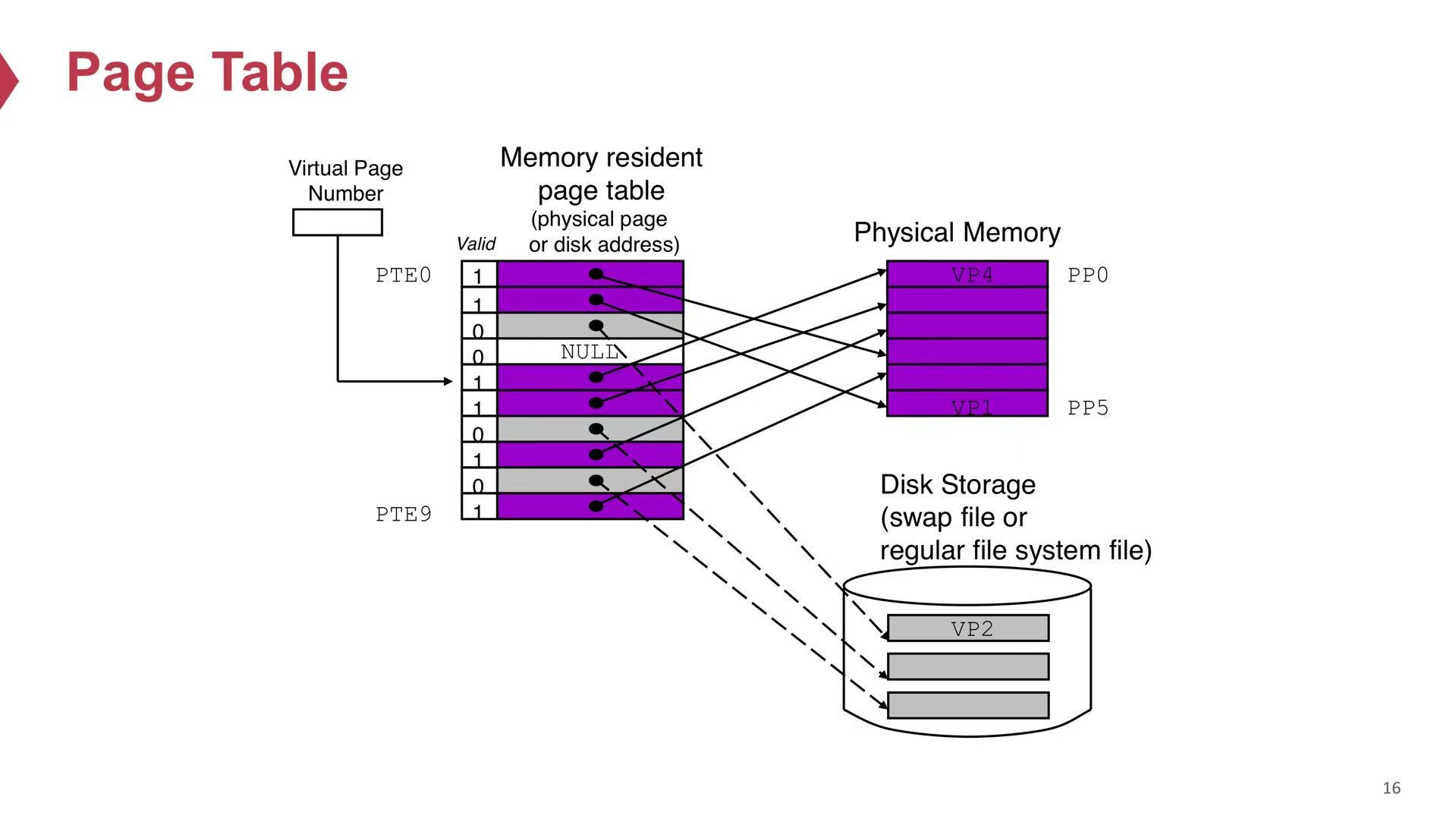

Page table: index is VPN while its entry consists PPN

page fault

If a DRAM miss happens, or say there’s no valid item in corresponding PTE, this is a Page fault.

Handler will try to update the PT; if the PM is already full, then chose a victim to swap out.

Functionalities of PT

Thus PT serves as a tool for:

1. Memory management
2. Memory protection: Extend PTE with permission bits
3. Memory recorder: Extend PTE with a Reference bit and a dirty bit

TLB

PT is a powerful tool, but it faces a problem. Dig into its procedure:

1. get VA and the base address of PT, calulate the PTEA(a PA)
2. fetch PTE from memory, using PTEA
3. translate into PA, fetch memory

This procedure contains 2 times of visiting memory, how to reduce the overhead?

By Applying the method of cache to PT, a TLB(Translation Lookaside Buffer) is created. It is a SRAM that can be visited faster, which caches the recent translated address

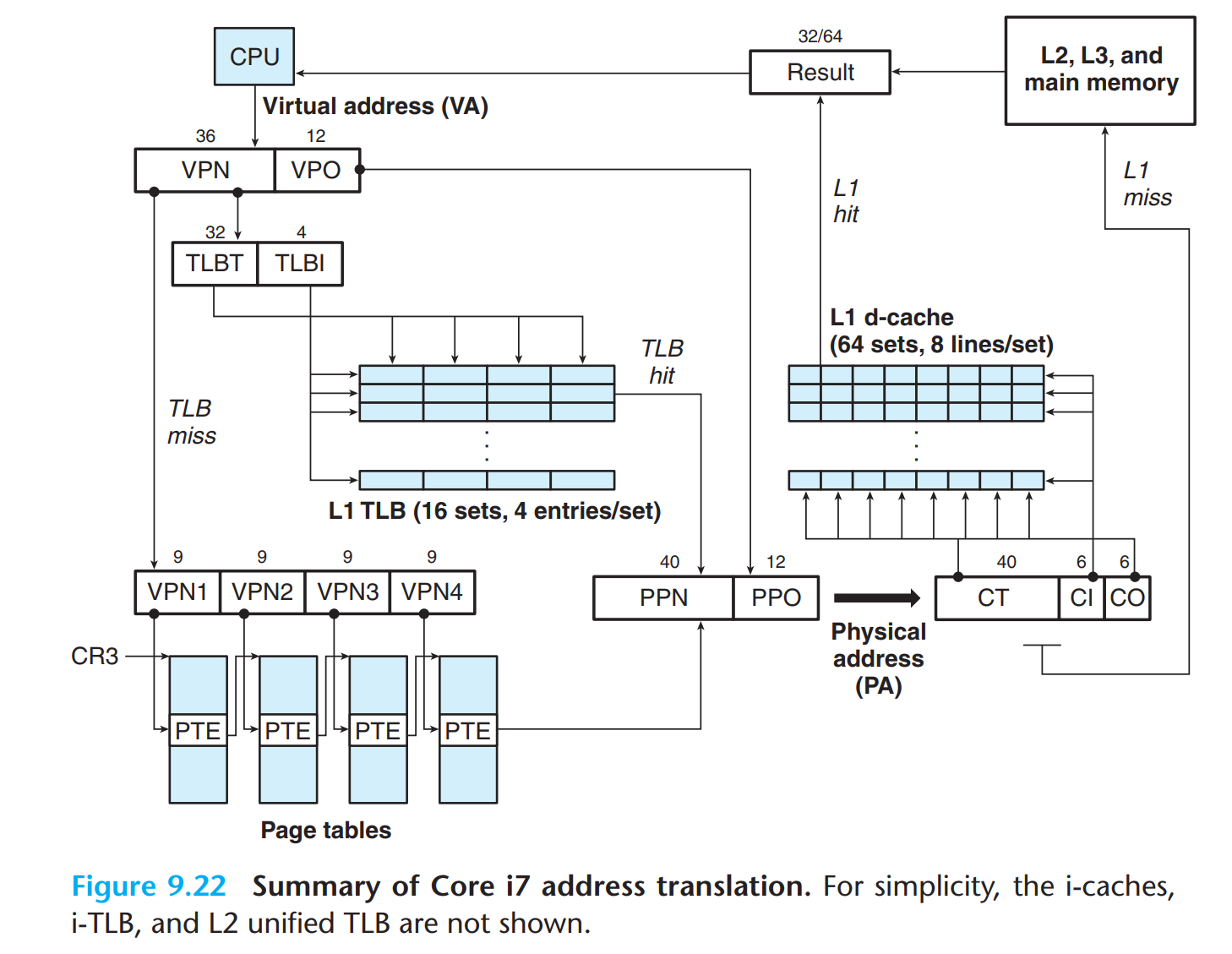

Multi-level Page Table

Uses a multi-level PT: if we use a single level PT, then it is gonna to hold 2^(n-12) lines of entries. By spliting it into more levels, it is broken down into sections, which can save considerable space.

The base address of first-level PT is store in a register named CR3 (Thus this table cannot be swapped out, which may be discussed later)

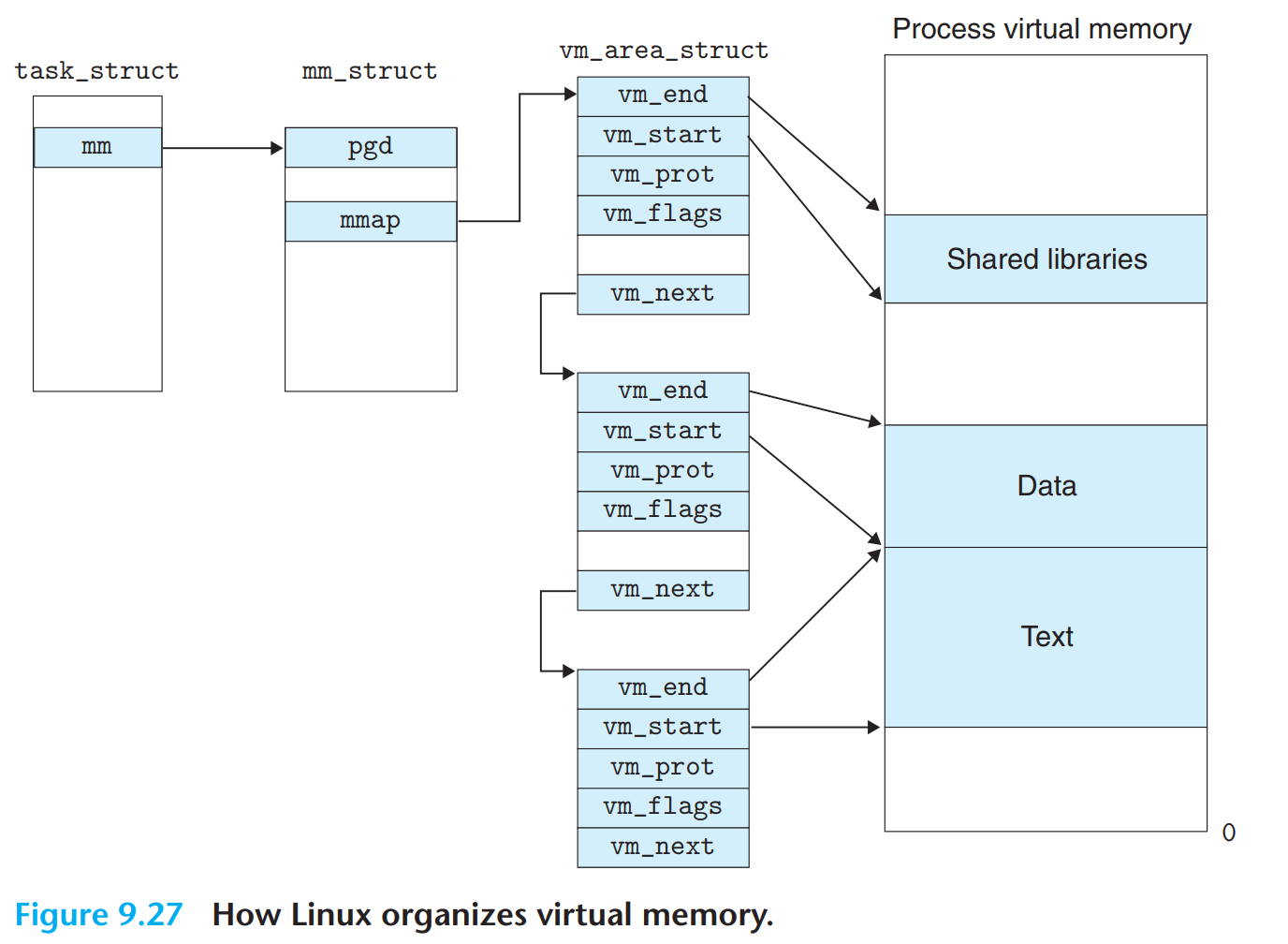

VMA

Virtual Memory Area, can be displayed in data structure below

• vm_prot: premision
• vn_flags: share / private

Memory Mapping

A VM area can get its intial values from the object, it can be backed by

• regular file on disk
• anonymous file (nothing)

fork() revisit

Make copies of old process’s mm_struct, vm_area_struct, PT

The PM will be separated using “Copy On Write” strategy (a lazy strategy).

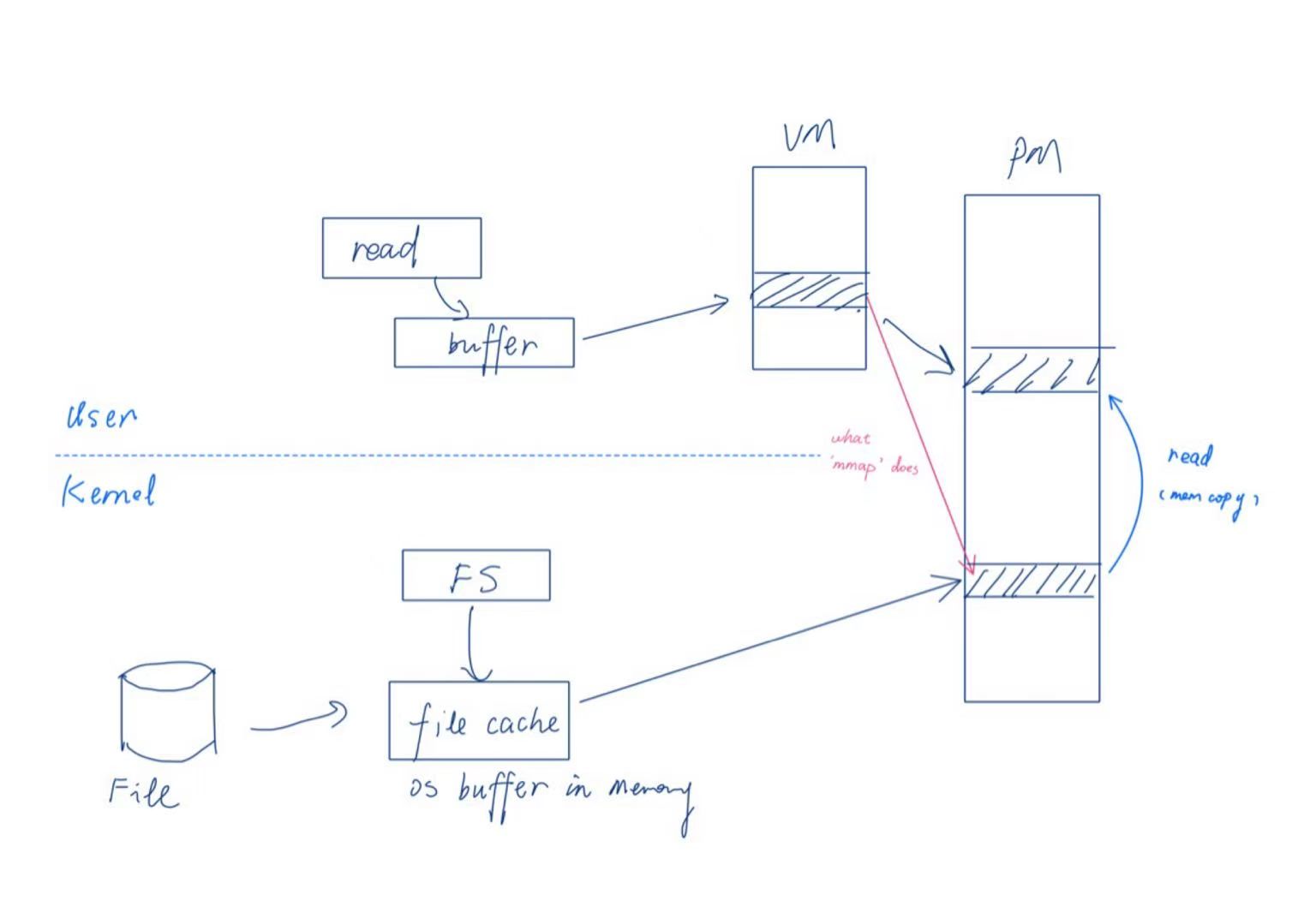

User-level

call mmap to allow tansfer without copying into user space

Page Swapping and Replacement Policy

happen time: maintain a high/low water mark

There are a few replace policies:

• OPT: optimal strategy
• FIFO: first in first out
